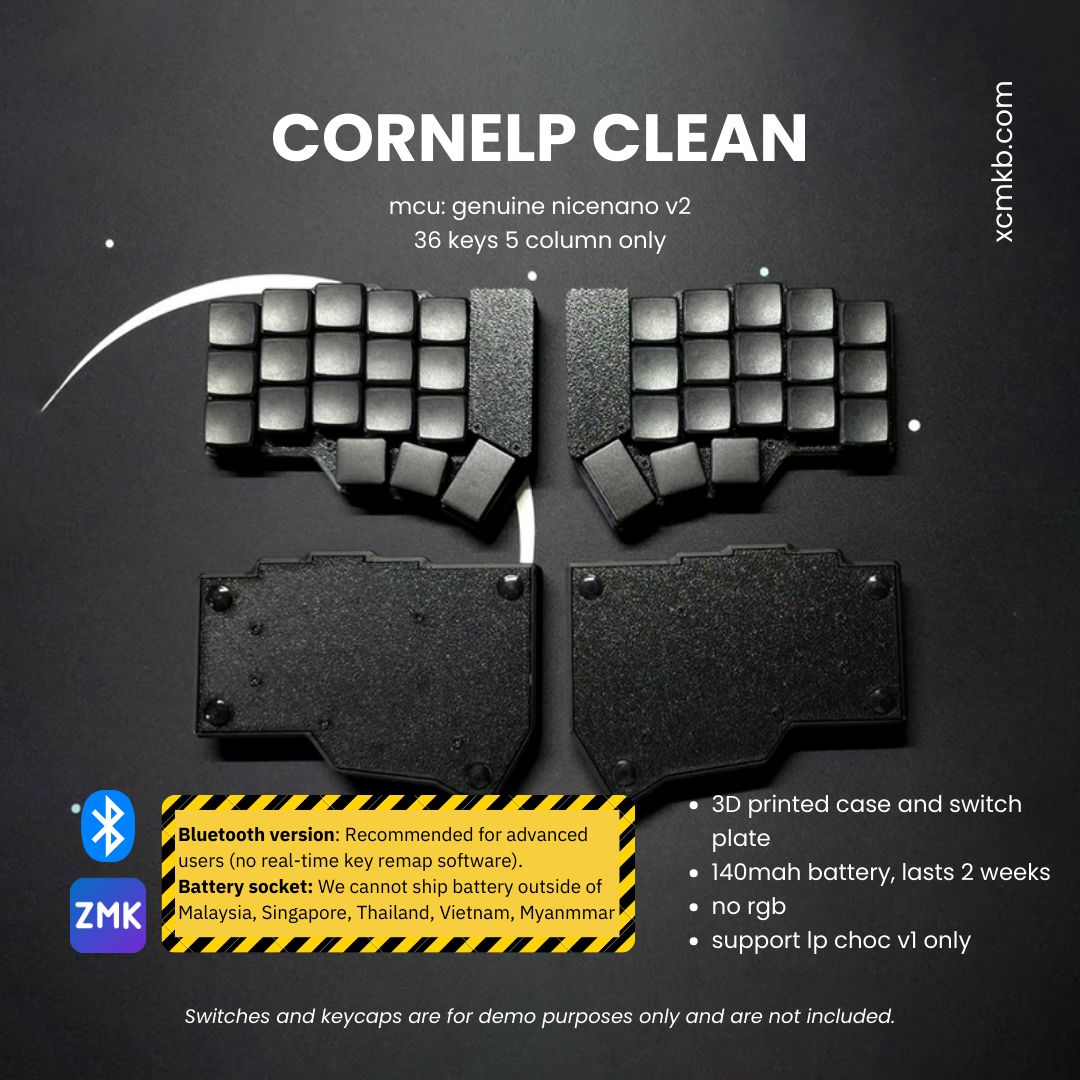

Wireless Corne LP Choc-spaced 42/36 keys

Wireless Corne LP Choc-spaced 42/36 keys

Please read Caution on using ZMK Bluetooth before proceeding with your purchase. The key remap guide can be found at zmk-config-crkbd. By default, 42 keys. If you need 36 keys, please add a note to the remarks section during checkout.

This price is for the barebones unit. It supports only hotswap LP Choc V1 switches. For bundle options, please refer to the switches and keycaps sections. You may add a martensitic steel plate for flexible tenting support and enhanced weight.

RM588.00 MYR
RM588.00 MYR
Sale Sold out
Model

For buyers outside of Malaysia, please be aware that taxes may apply. The responsibility for any fees lies with the buyer.

MCU

Nicenanov2

  • Genuine
  • Pricey

Supermini

  • Affordable
  • Reliable even it is clone

Display

Display is convenient to debug, check connected bluetooth profile and connection.

OLED

  • Cheap but power consuming
  • 500mah battery lasts approx 6 days

Niceview

  • Genuine
  • Power-saving
  • Using Sharp's cutting edge Memory-in-Pixel technology
  • Nicer graphic
  • 500mah battery lasts approx 6 weeks

LPDisplay

  • Low power memory display
  • Power-saving
  • Function like Niceview
  • 500mah battery lasts approx 6 weeks

Battery

140mah

  • slot under mcu perfectly

500mah (default)

  • add under pcb, with additional 3mm top up to overall board thickness

Note

  1. Charge each side using usb-c. TRRS cable that connects between split couldnt be use to charge the slave.
  2. Most of the boards have socketed battery so you can change the battery without desoldering.
  3. Battery usage report and other details please read here.
  4. WE CANT SHIP BATTERY FOR INTERNATIONAL ORDER (OUT FROM MALAYSIA, VIETNAM, MYANMAR, THAILAND AND SINGAPORE) . You may search for 3.7v Lipo Battery 401225 (100mah), 501230 (140mah), 303450 (500mah), 312278 (800mah).

Firmware

We do not have real time keyremap software like Vial for ZMK. We use nick's Keymap Editor to remap, compile firmware and then flash the firmware to both sides. More on the bluetooth board read here.

Shipping

Orders shipped within two business days unless made to order board. Delivery typically takes 3-7 days to reach your destination, barring any customs delays. We will mail you on the delay of board shipping if we have issue on missing parts / restocking the parts. Maximum 3 weeks to ship the board.

Please note that slight modifications may occur, such as changes in the type of screws used or adjustments to the OLED cutout. However, rest assured that we will provide testing footage and product images via email before shipment.
